The Real Deal Airsoft

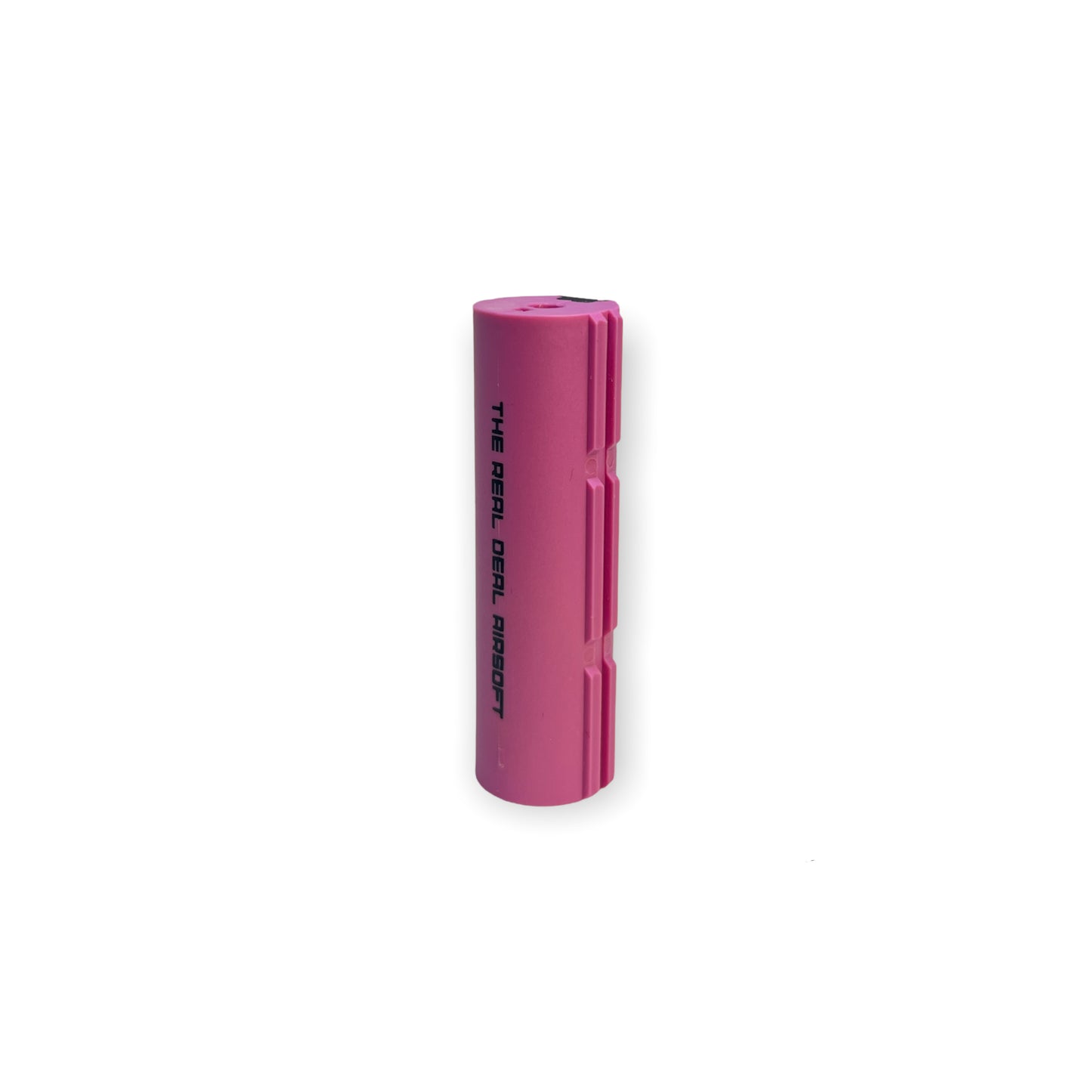

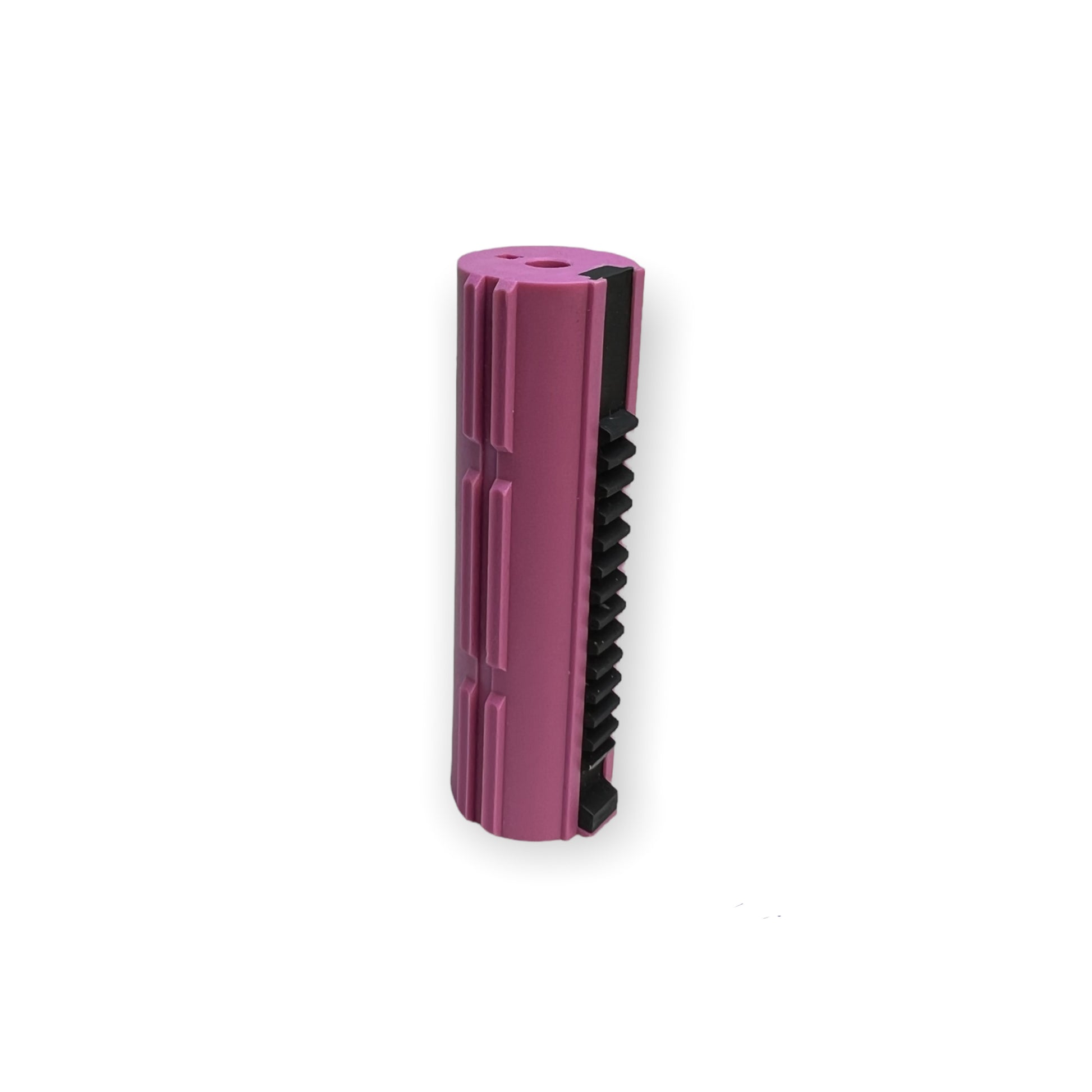

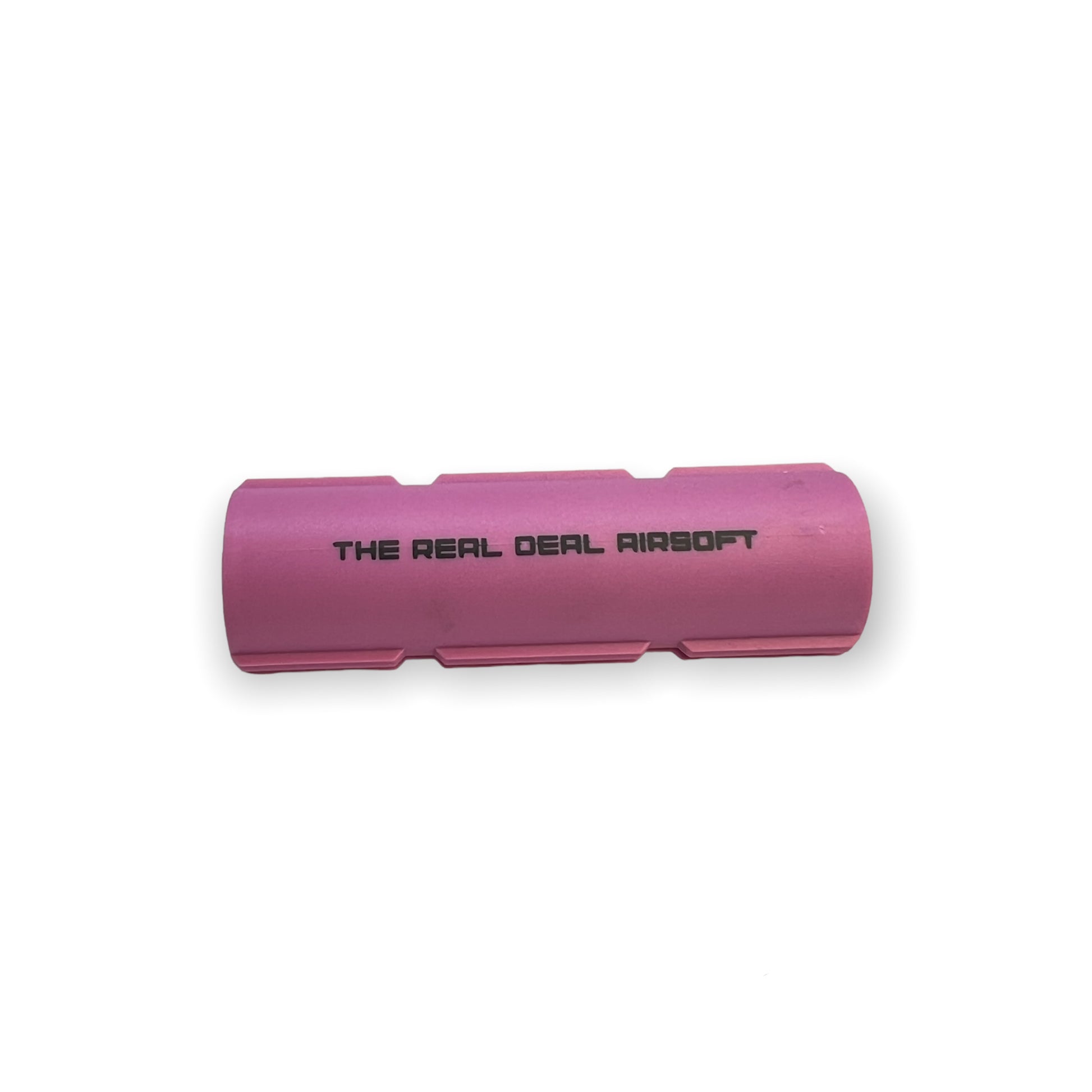

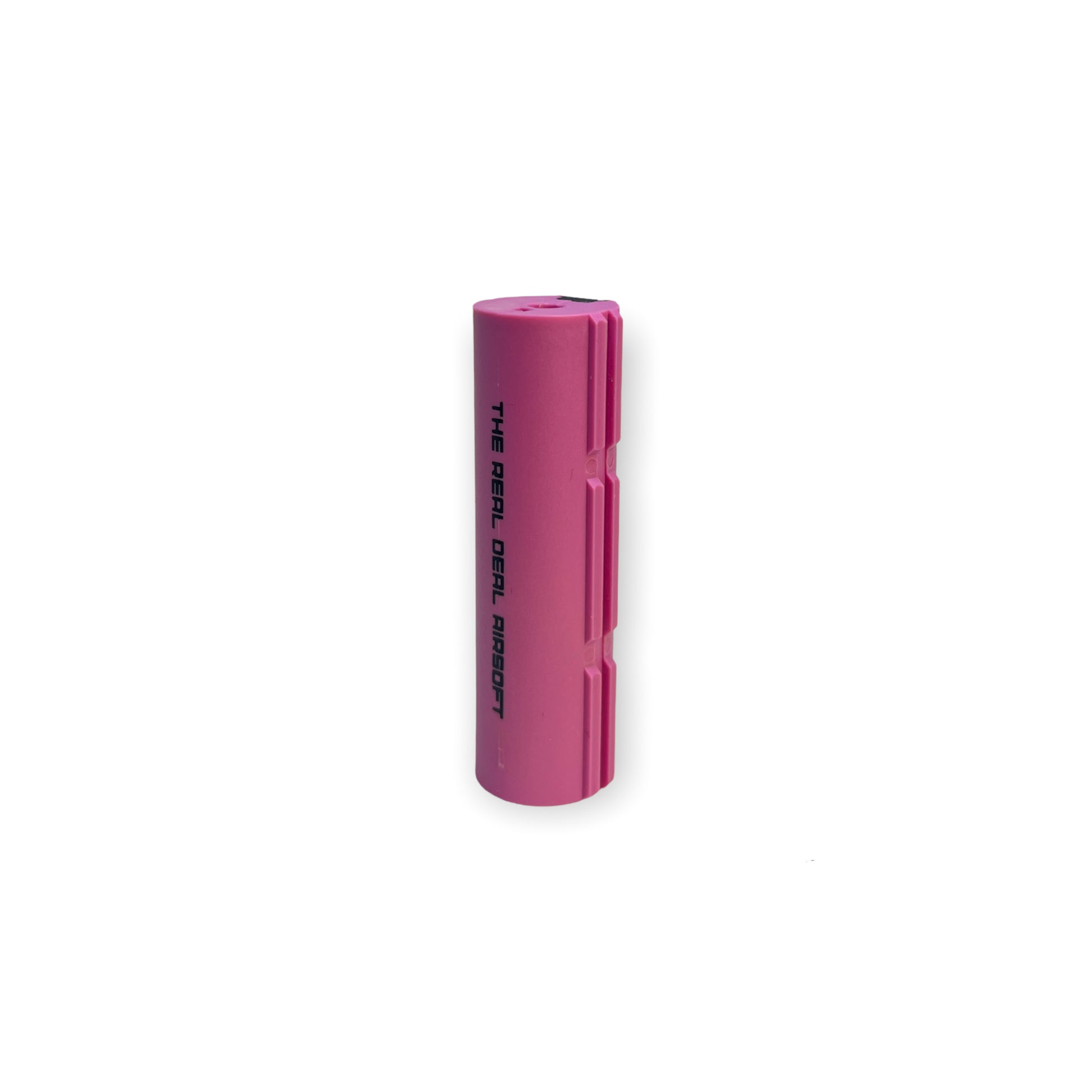

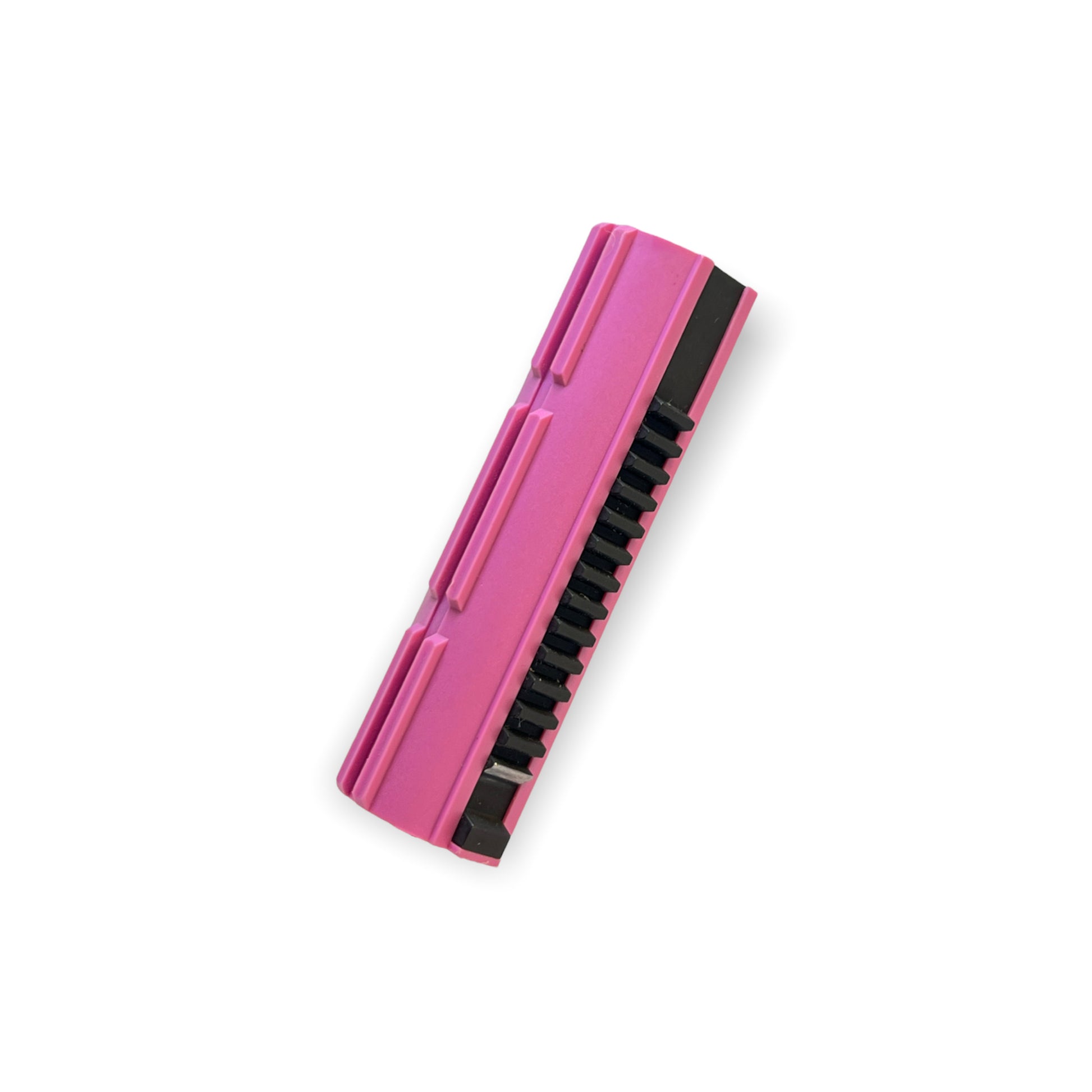

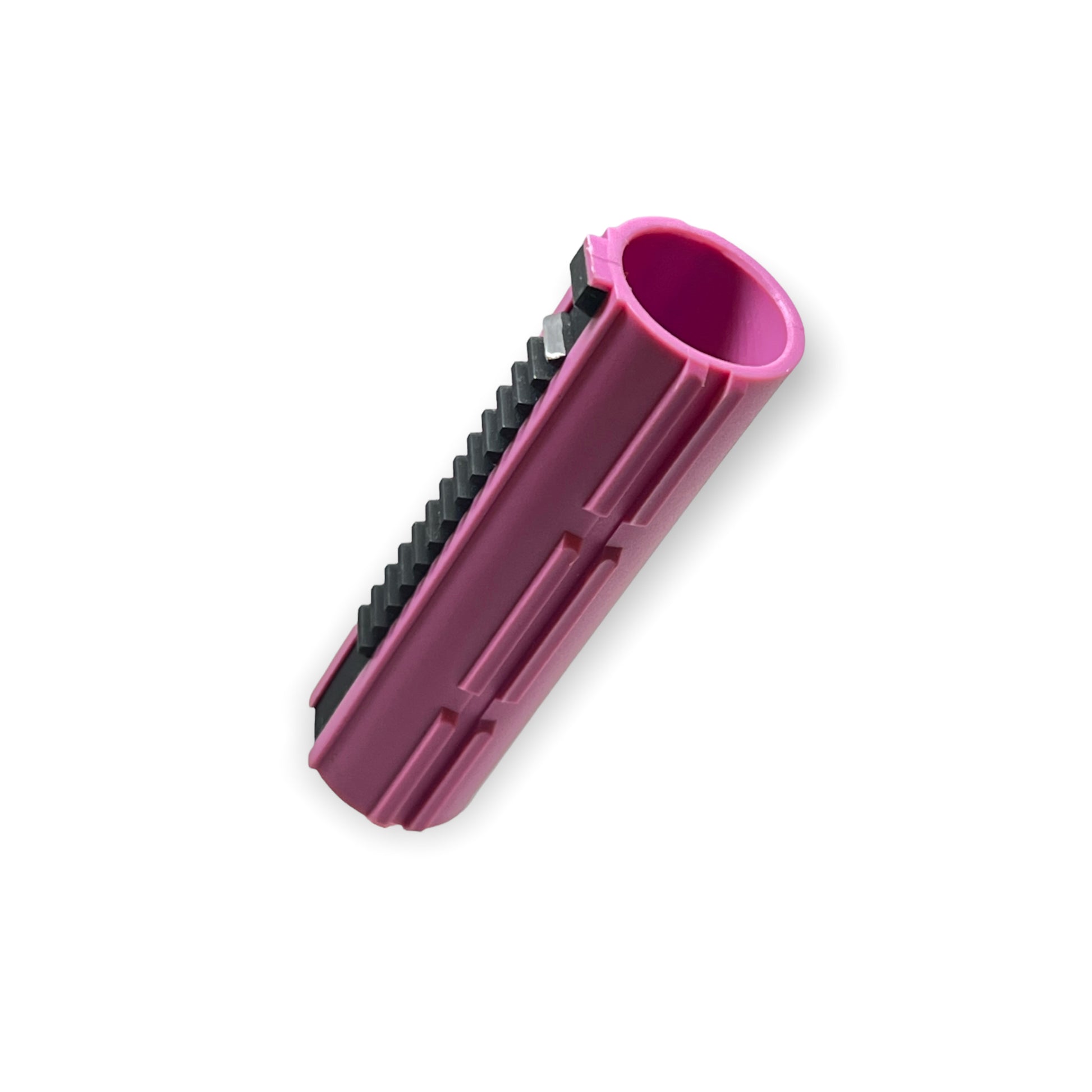

Real Deal Performance Piston AOE MOD

Regular price $15.99 USD
Regular price Sale price $15.99 USD
Tax included.
Rack Bonding

The Real Deal Airsoft Piston AOE Mod 4.0

There is an option to purchase without a bonded rack, for users that wish to short stroke or remove excess teeth for DSG builds, simply purchase that variant. We recommend to leave one extra tooth after release tooth for added structural integrity when modifying for DSG.

All new 4th generation piston with significant design changes from all previous models. Wide use Piston, for use in majority gearboxes that use  V2 and V3 Pistons.
⁍ 14 Tooth  Steel  (Metal Injection Molding & Heat Treated) AOE Corrected Rack
⁍ 2nd Tooth removed 3rd Tooth Cut to 45° Angle to ensure proper engagement with Sector Gear
⁍ Steel Rack is Bonded to Piston Body for added Strength
⁍ Strong DuPont Polymer body with New Thick Pick Up Tooth Support  ( Please Read Tech Tip at the Bottom)


**Important Tech Tip***
This Piston has a thick reinforcement on the rear of the piston behind the pick up tooth. You can damage this portion of the piston if you trip the anti reversal latch upon disassembly. When the anti reversal latch is tripped when under spring tension, especially with Duel Sector Gears , the sector will spin the reverse way and release tooth will cycle backwards smacking into the polymer support.
The prototype versions during beta testing all intentionally had the support removed to test this scenario. No failures occurred. Test was 70k rounds 18:1 DSG M160 Spring.
Drop in fit for standard v2 and V3 spec. Retro Arms Gearbox / G&G G2 Gearbox / Krytac Gearbox / VFC / G&P Stoner / CYMA Platinum / VFC Scar H / FN Herstal Scar L / Ares Gearbox / Elite Force Gearbox

This performance piston is designed to decrease the overall stress on your internals. By correcting the angle of engagement you are significantly reducing the stress caused from high cycling AEGs, where the sector gear slams into your piston at a poor angle, or even engaging the second tooth due to improper spacing,  This leads to broken teeth and worn down parts. This Piston guarantees that your sector gear will never prematurely engage the pick up teeth at a poor angle only at the correct angle. A piston with a full metal rack is a necessity in all AEG gearboxes
