Retro Arms CNC Gearbox V2 (8mm) – QSC
Retro Arms CNC Gearbox V2 (8mm) – QSC
| Minimum Cart Quantity | Discount | Wholesale Price |
|---|
| Minimum Cart Amount | Cart Discount |
|---|
Couldn't load pickup availability
!! Do NOT use MAXX cylinder head !! - Retro Arms

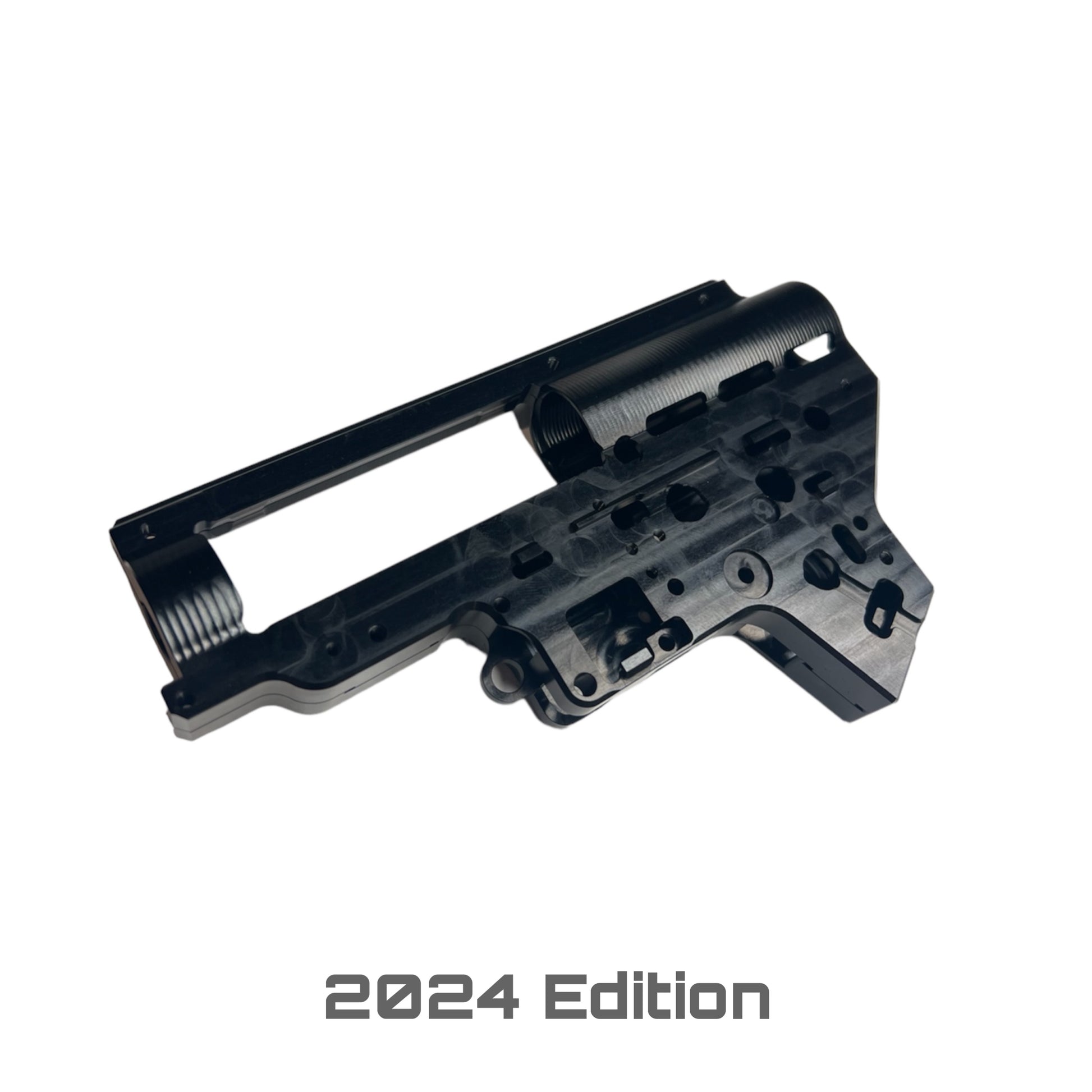

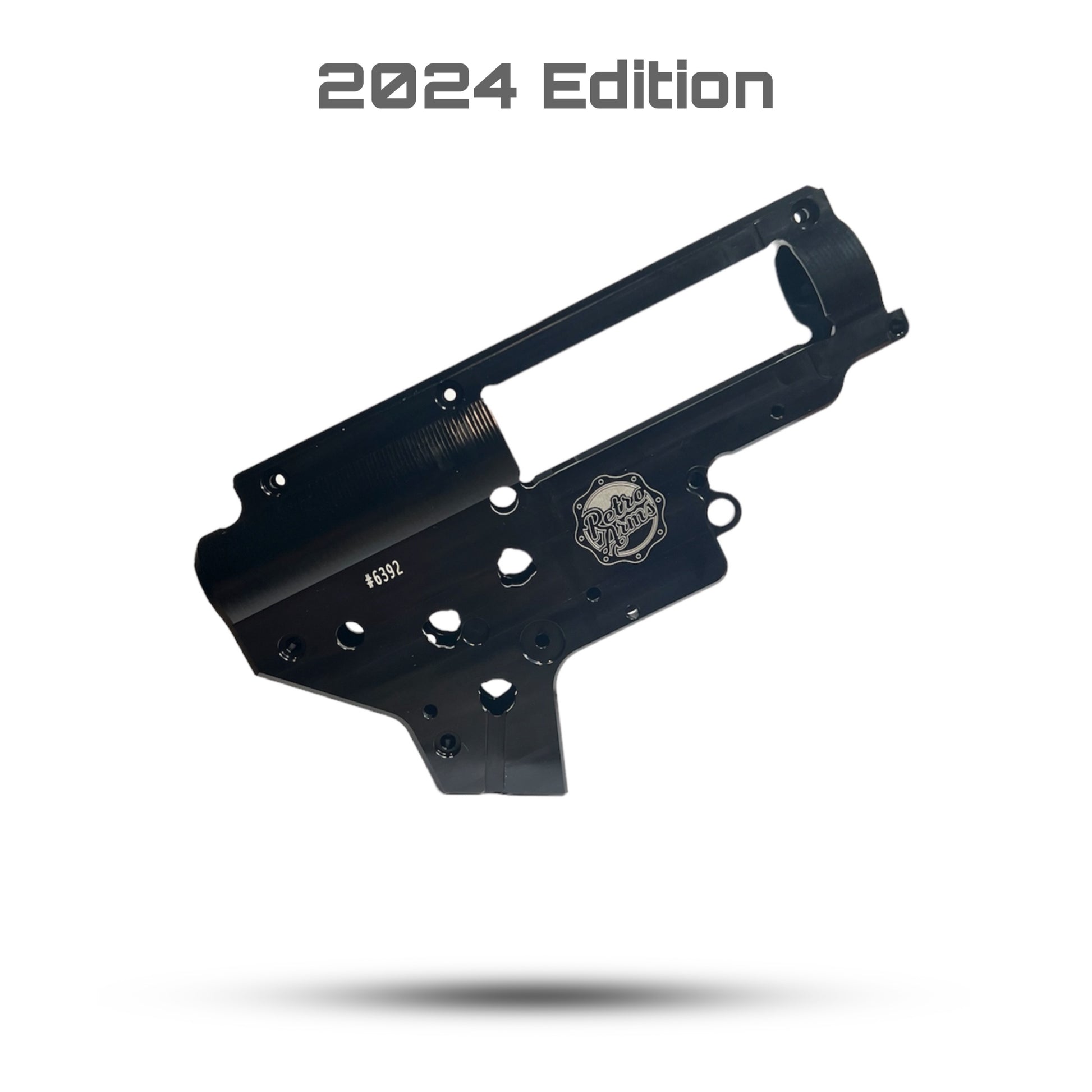

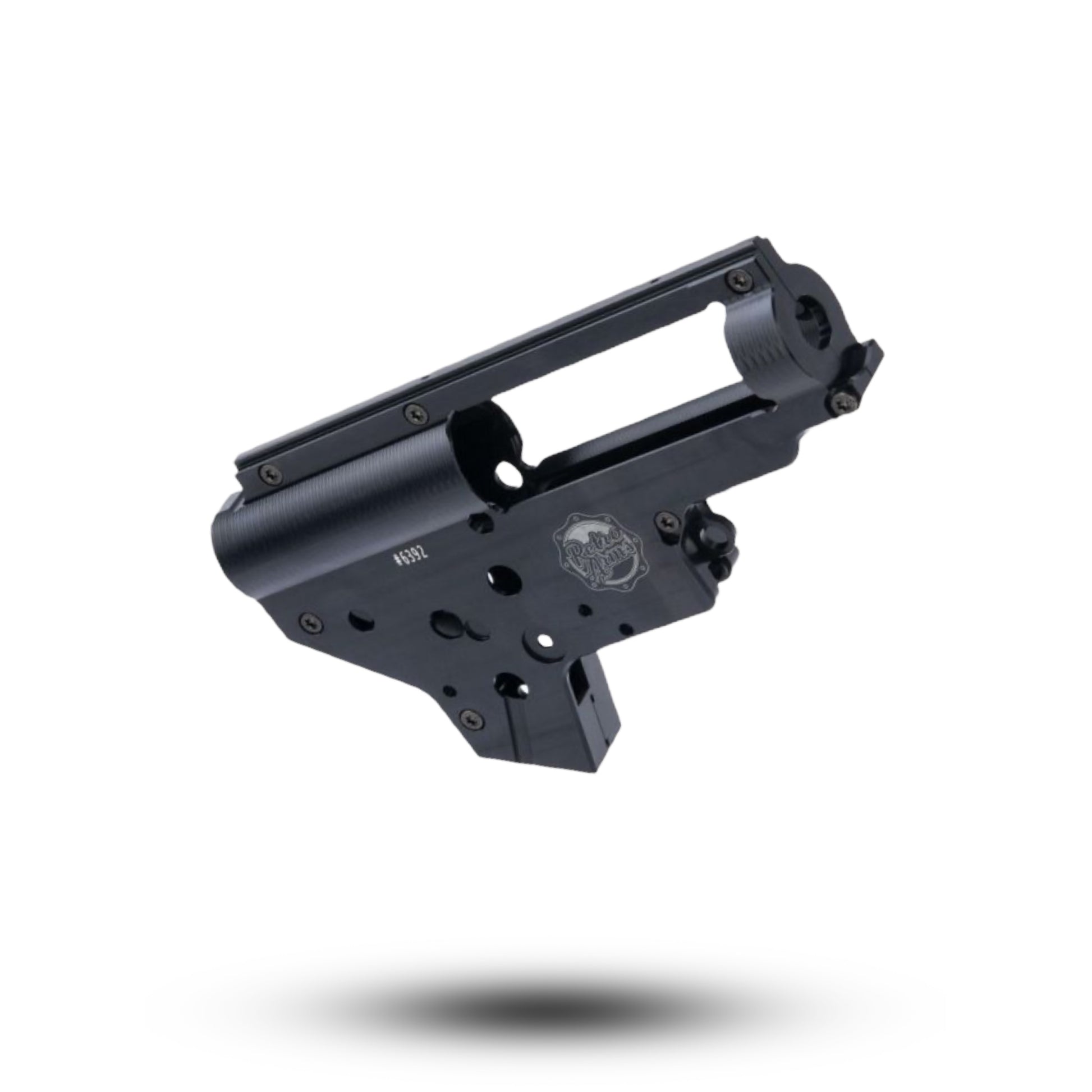

2024 Edition Retro Arms V2 QSC Gearbox in Black

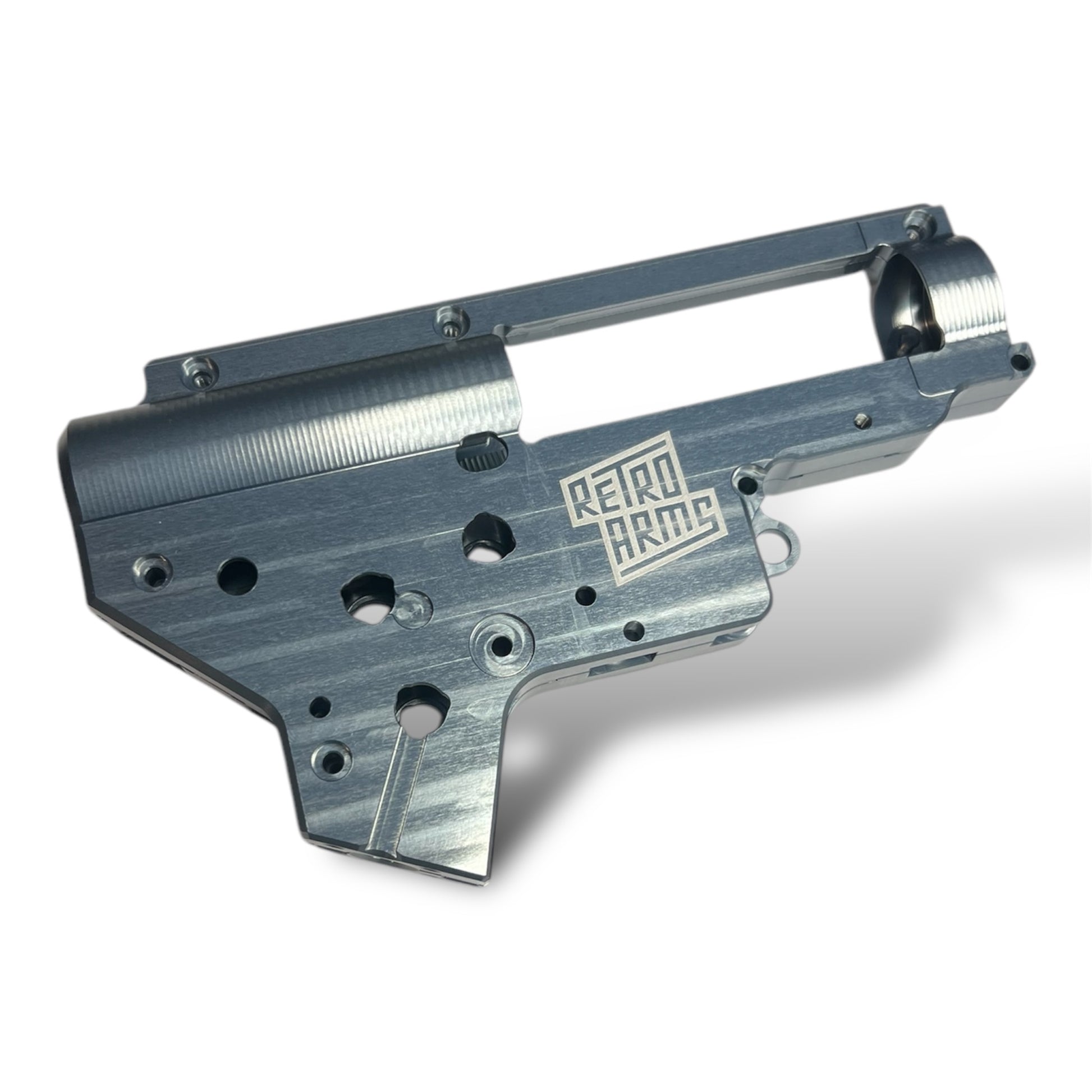

Standard Retro Arms V2 QSC Gearbox in Black or Blue
Key Features
- Precision machined from billet EN AW 7075 T651 aluminum
- Quick spring change guide system (QSC)
- Durable anodized finish
- Reinforcement in key stress points to counter rapid wear from high performance parts
- Pre-radiused cylinder windows - helps evenly distribute impact force
- Deeper wire channels along base of gearbox
- Anti Reversal Latch access
- Bevel gear window cut out on lower shell
- AOE viewing window ( Sector - Piston )

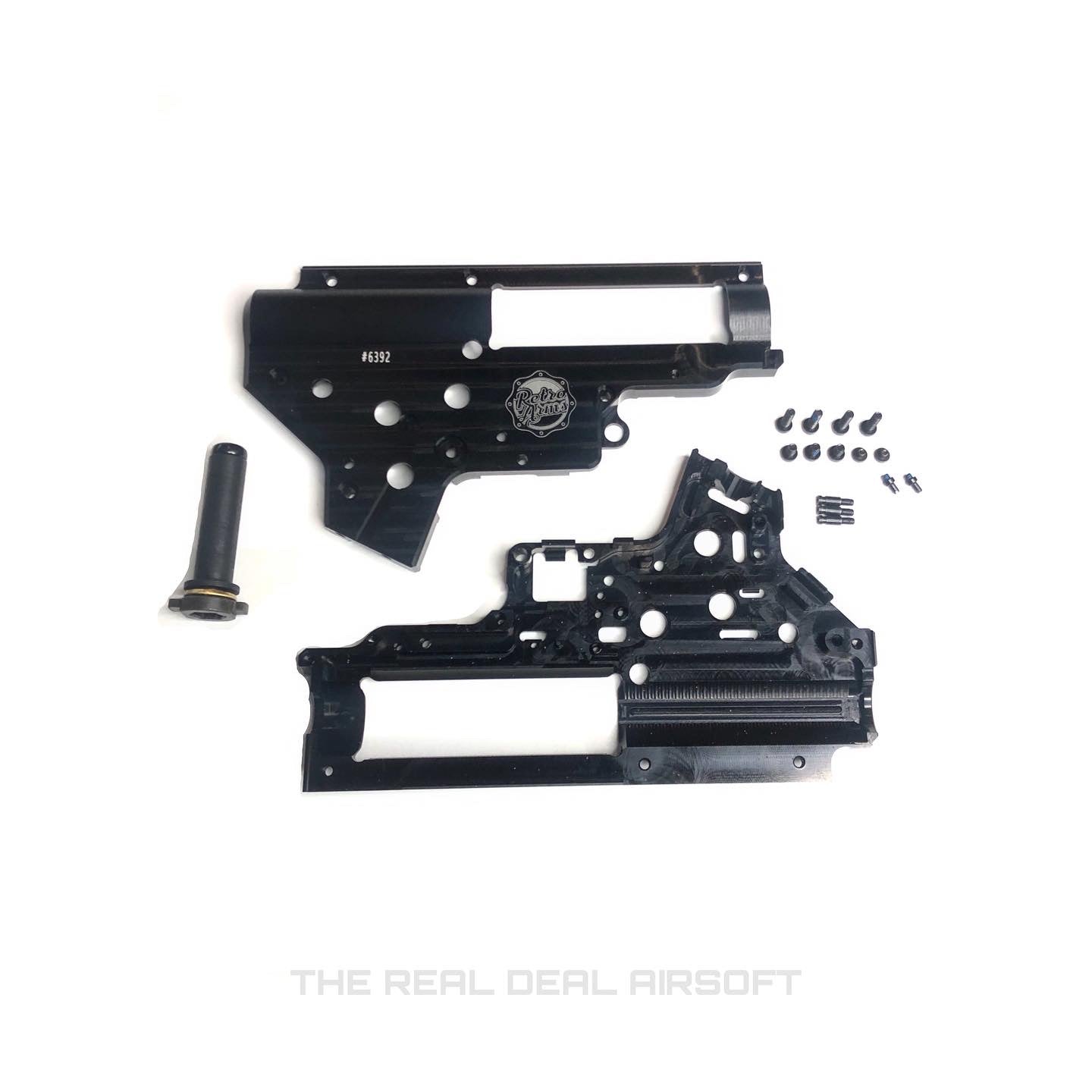

- Comes with Ball Bearing Guide Plug and Gearbox Screws
I have personally been using these gearbox shells for many many years. It is a product that has stood up to the test of time, and it gets The Real Deal Approval.
Compatibility: For Tokyo Marui, G&P, Matrix and other compatible M4 / M16 Series Airsoft AEG Rifles (Modification may be required depending on brand but mostly the rear portion of the lower receiver is where fitment issues most commonly occur )
Material: CNC Billet EN AW 7075 T651 Aluminum
2024 Edition Notes from Retro Arms
We made some useful improvements into our CNC gearboxes V2:
- Spring holders have grooves, so the springs for tapped plate and trigger switch will not jump off.
- Added groove for safety lever, so it will hold during installation.
- Added groove for trigger spring, for better fitting.
- AOE control hole.
- Sockets for bushings/bearings have smaller diameter about -0,02mm (7,98mm), for non-overturning the bushings during installation. The socket edges are cutted down for better installation.
- We enhanced grooves for wiring for 1mm, you can now use wirings with 2,5mm diameter.
- Added protecting edge for wiring against the motor.
- All threads are now shaped instead of cutted for better strength.
- Both of the gearbox parts are centered by milled grooves and edges.
- Added hole for releasing anti-reverse latch.
- For better durability, we added more material around cylinder head part of the gearbox, this was the most critical part and we added 100% more material where is huge radius.
- Added groove for anti-reversal latch spring, so it will not jump off.
- Outer edges are now cutted off.
- You can find what type of sockets gearbox have on the outside part of the gearbox (8mm or 9mm).
Share
Second one I've purchased. Love not having to worry about blowing off the front of my gearbox. Love the routing for wires. ETUs fit nicely. If you're buying nice internals why not put them in something that's going to last.
I use this in my favorite builds the most solid gear shell there is.
Precision CNC’d, looks great and it nice and smooth. Would definitely recommend for an upgraded gearbox
Just wish it had the hole for the bolt catch
whats the diffrence between a stock gear box and a retro arms
a standard gearbox has many intolerances as well is made from cheaper weak metals which always fail eventually. Especially if you upgrade your aeg theres added stress from the increased cycles, cycle time, and over all increased abuse. They all crack eventually. A retro box will never crack and since it is not off spec, upgrading is super easy and makes the process 10 times easier. You do not have to radius the gearbox, nor dremmel out stupid trigger contact threads to seat a mosfet. It is the best upgrade for any aeg. It is a shame to spend $500 on parts for your gearbox shell to break and potentially break other internal parts to just have to re build it. With retro, you build it once and forget about it with confidence.
