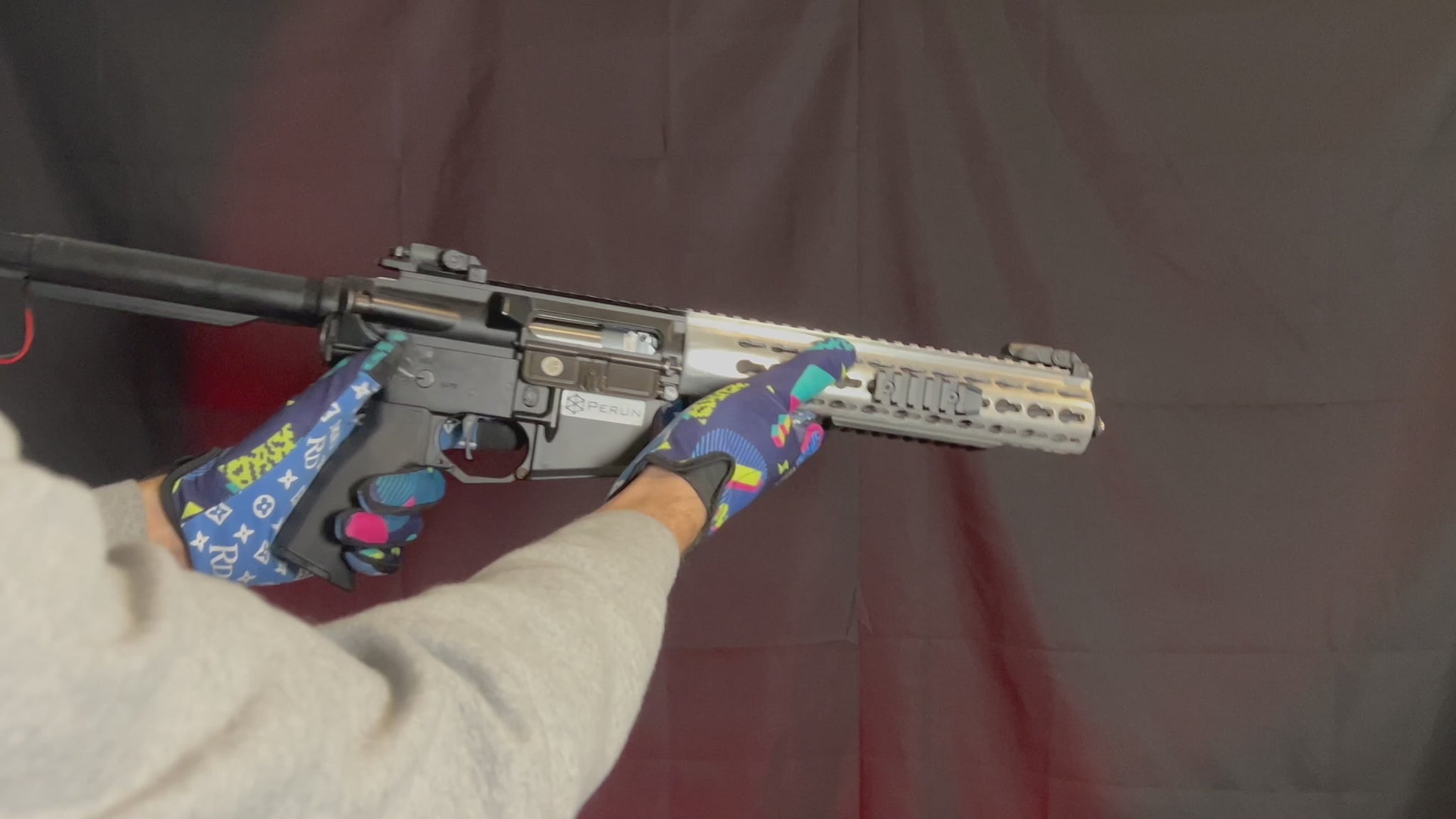

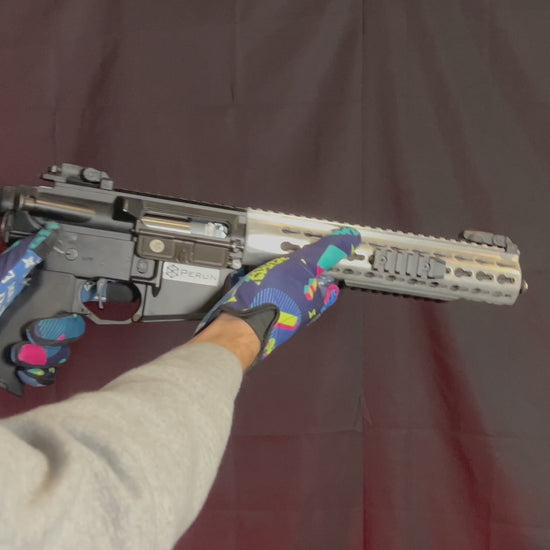

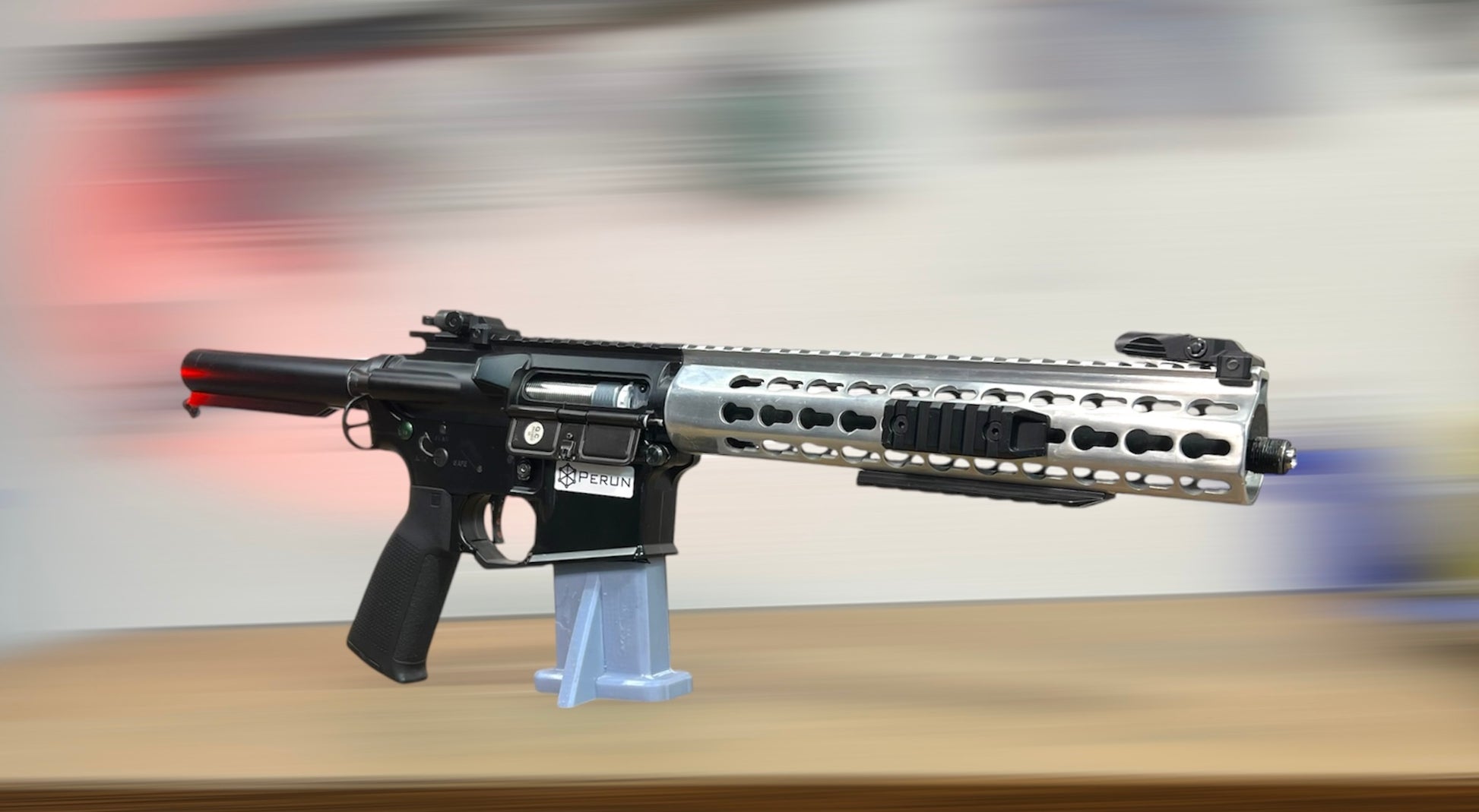

Rosaura Brushless DSG Rebuild

Service to repair and rebuild AEG with detailed inspection report

1.5 Joules 40 RPS

• Motor Tabs had heat shrink with wires crushing on top. I removed heat shrink from motor tabs
• Selector Switch had terrible slop, screw had to be modified
• Selector Sticker placement needed to be changed and fixed with glue
• Incorrect porting , Real Deal Airsoft 100% Steel Cylinder Installed
• Gearbox was extremely dry with zero lubrication. Caused a few failures
• FPS Softair Piston Head Failure, parts exploded in cylinder. X Ring was cut from previous port in cylinder.
• Nozzle was too heavy and needed to be replaced to real deal 21mm Optimized Nozzle
• Bearings were not secured to gearbox and came loose. I bonded them to the gearbox
• Extremely weak Anti Reverse latch spring.
• PME induced from dry system and failed piston head destroyed teeth on main piston rack - Real Deal Ultimate Piston Assembly Installed
• Exposed wiring thru out mosfet. Covered with heat shrink
• New Grip installed PTS EPG
• Hop Chamber needed slight spacing for proper nozzle to bucking tolerance, o ring was placed on hop chamber
• Incorrect selector sticker chosen - switched to correct & tuned sticker by moving it over 1.5mm on selector switch plate
• Thread Locked adjustment screws on trigger
• Thread locked motor grub screw

Parts added

• Retro CNC Hop Chamber $38
• Real Deal 6.02 Steel inner barrel 285mm $29.99
• Maple Leaf MR Hop Bucking $10.50
• Maple Leaf Omega Tensioner nub $6.99
• Real Deal Stabilizer O rings - FREE
• Body Pins $9.99
• PTS EPG $19.99
• Ultimate Piston Assembly W/ High Speed PISTON HEAD $40
• Real Deal 21mm Nozzle $8
• Real Deal Cylinder $9.99
• Real Deal Labor $250

total $423.45 = $423 flat.
